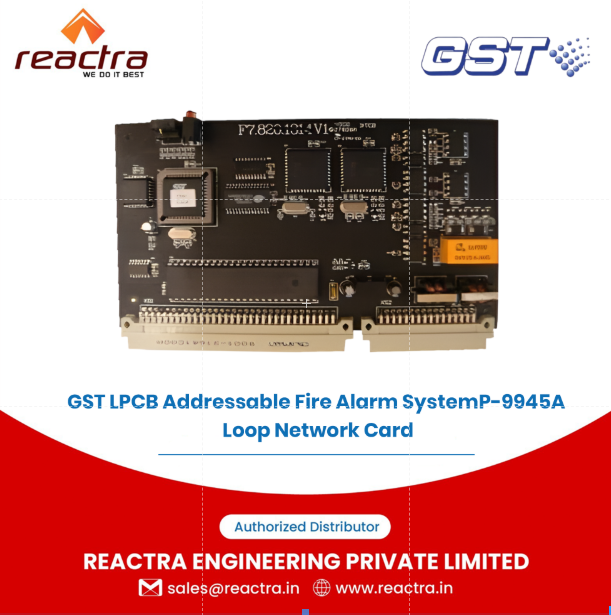

GST LPCB Addressable Fire Alarm SystemP-9945A Loop Network Card

GST LPCB Addressable Fire Alarm SystemP-9945A Loop Network Card Specification

Operating Temperature
40 Celsius (oC)

Application
Networking up to 32 GST-IFP8 panels in a ring topology

Product Type
Network Card/ Loop Card

GST LPCB Addressable Fire Alarm SystemP-9945A Loop Network Card Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About GST LPCB Addressable Fire Alarm SystemP-9945A Loop Network Card

P-9945A is an optional card for GST-IFP8 control panel, providing two photoelectric isolation RS485 interfaces for ring network. This card shouldnt be inserted and removed when it is energized. Network OK is displayed when the panel is switched on. That means successful registration. LEDs: Master InterfaceA1B1com HL1 LED: Green. It illuminates steadily or flashes when RS485 master interface is in normal communication. Slave InterfaceA2B2com HL2 LED: Red. It illuminates steadily when RS485 slave interface is in normal communication. In the network made of those cards, each of RS485 loop shouldnt exceed 1200m in all, supporting the network of maximum 32 GST series control panels.
