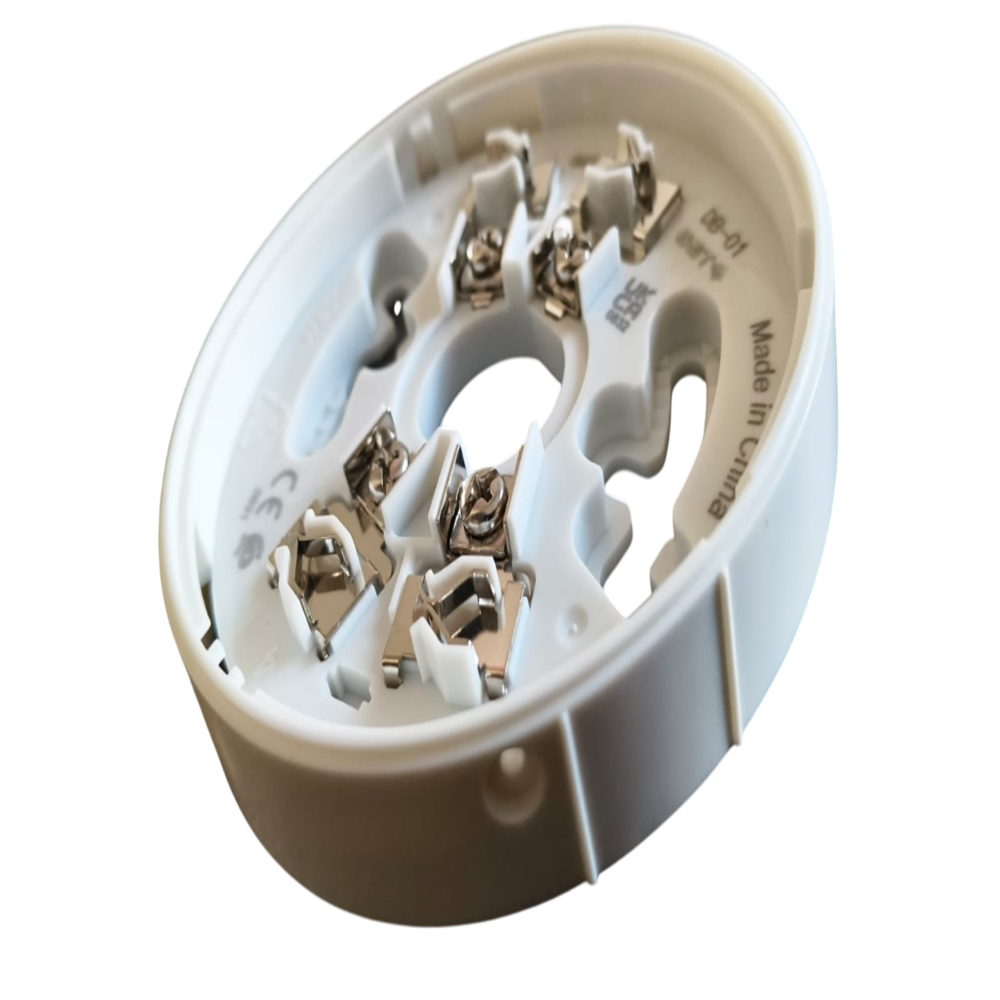

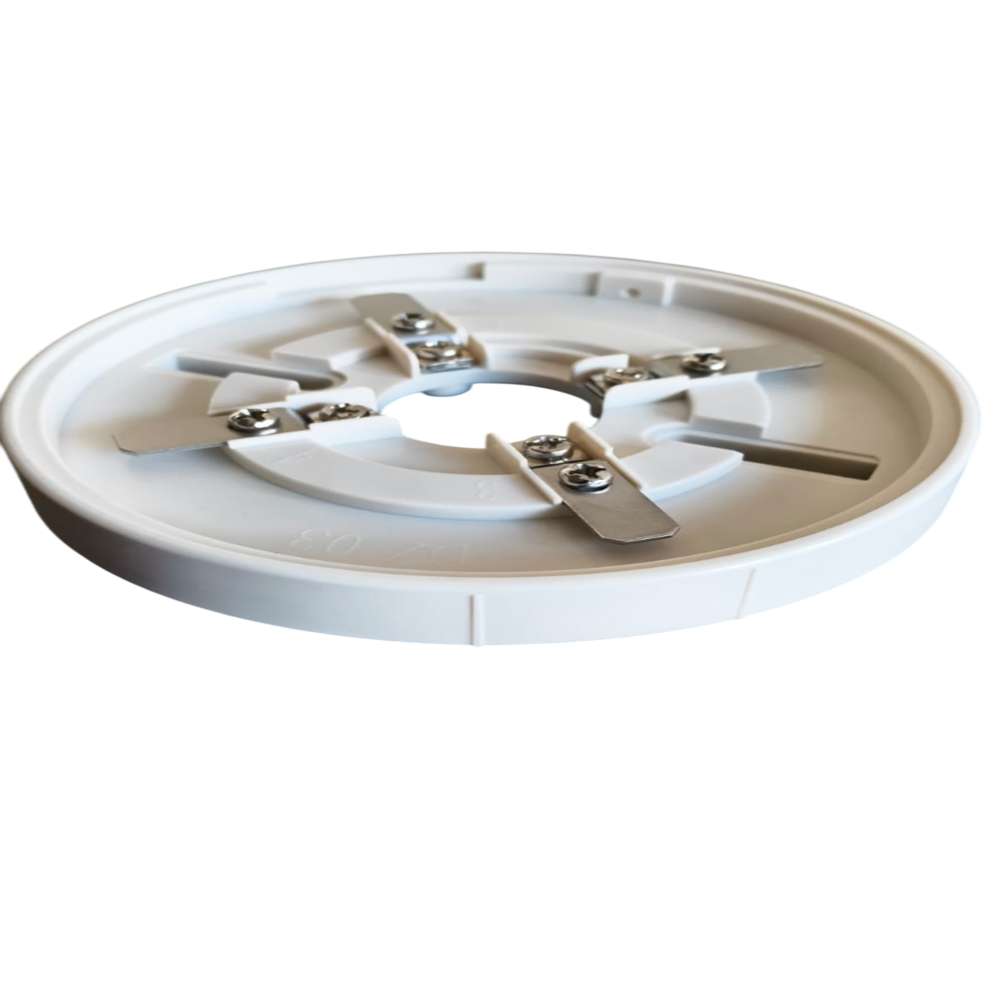

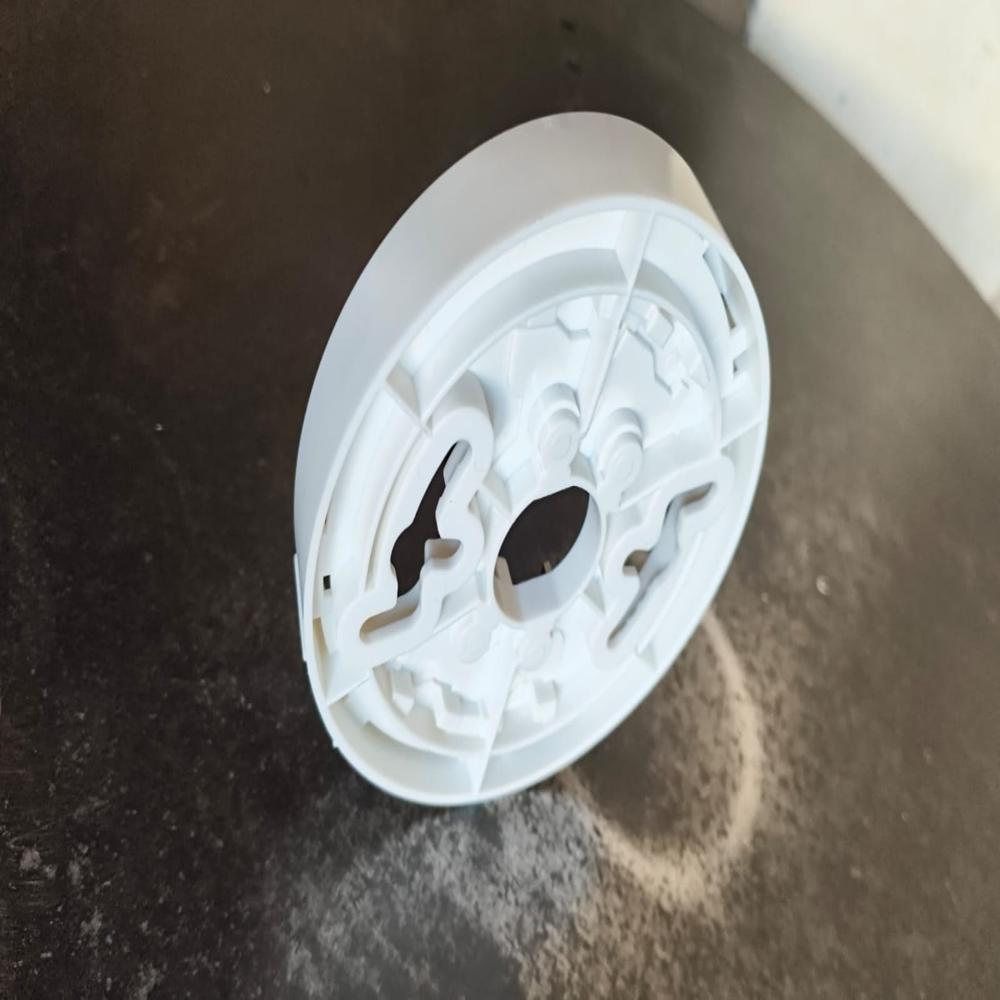

DB-01/DZ-03 Common Detector Base

DB-01/DZ-03 Common Detector Base Specification

Power Consumption
Negligible (passive device)

Measurement Range
N/A (Base only)

Response Time
Instant (subject to detector response)

Features
Universal compatibility, Quick installation, Sturdy build, Reliable electrical contacts

Sensitivity
N/A (Depends on installed detector)

Interface
Terminal block

Mounting Type
Ceiling or Wall mount

Wireless
No

Sensor Type
Compatible with various smoke/heat/gas detectors

IP Rating
IP20

Application
Fire alarm systems

Signal Type
2-wire or 4-wire, depending on detector

Cable Length
Depends on installation

Operating Temperature
-10C to +50C

Product Type
Common Detector Base

Material
Fire-retardant ABS Plastic

Input
DC 12~24V

Output
Direct electrical connection to detector

Function
Mounting base for fire alarm detectors

Usage
Used as a base for smoke, heat or gas detectors

Accuracy
High, as per detector specifications

Resolution
N/A (Base unit, depends on compatible detector)

Voltage
12V to 24V DC

Weight
Approx. 40 grams

Operating Humidity
95% RH (non-condensing)

Colour
White

Compatible Models
Standard smoke/heat/gas detector heads

Dimensions
Approx. 100 mm diameter

Fixing Holes
3 major mounting slots for secure fixing

Screw Terminal Material
Brass with anti-corrosion plating

DB-01/DZ-03 Common Detector Base Trade Information

Minimum Order Quantity
1 Number

Delivery Time
1 Week

About DB-01/DZ-03 Common Detector Base

Technical Specification
DB 01

Compatible Devices:
DI 9101E, DI 9102E, DI 9103E,DC 9101E, DC 9102E, DC 9103E,DI 9405, DI 9406
Material: ABS
Dimension: 100mm(D) X 14mm(H)

DZ 03

Suitable for I-910x Series Detectors and for C 910x series Detectors

Universal Compatibility and Sturdy Construction

Crafted to fit most standard smoke, heat, and gas detector heads, the DB-01/DZ-03 base offers flexible integration into fire alarm systems. The three major mounting slots ensure stable attachment to walls or ceilings, making setup secure and straightforward. Its fire-retardant ABS plastic housing enhances safety, while corrosion-resistant brass terminals guarantee long-lasting, reliable electrical contacts in demanding environments.

Efficient, Passive Operation for Safety Systems

With negligible power consumption and direct electrical connections, this base unit is an ideal choice for both new and retrofit installations. Whether deploying 2-wire or 4-wire detector heads, the DB-01/DZ-03 ensures instant communication between the detector and the fire alarm panel, enhancing response times and overall system reliability. Designed for indoor environments, it maintains performance across a broad temperature and humidity range.

FAQ's of DB-01/DZ-03 Common Detector Base:

Q: How is the DB-01/DZ-03 detector base installed?

A: The DB-01/DZ-03 is designed for quick and secure installation on walls or ceilings using its three major mounting slots. Simply position the base, mark the fixing holes, attach it firmly, and connect the wiring to the brass terminal block before mounting the compatible detector head.

Q: What types of detectors are compatible with this base?

A: This base is compatible with a wide variety of standard smoke, heat, and gas detector heads. Its universal design allows integration with most detectors operating on 12-24V DC input, ensuring flexibility for different fire alarm system requirements.

Q: When should I use this detector base in my fire alarm system?

A: The DB-01/DZ-03 should be used whenever you require a durable, reliable mounting solution for smoke, heat, or gas detectors, particularly in projects aiming for easy installation and dependable electrical connections in residential or commercial settings.

Q: Where can the detector base be mounted?

A: It is suitable for mounting on both ceilings and walls. Ensure the chosen location is indoors and provides adequate coverage for the detector, while also observing the manufacturer's installation guidelines for optimal system protection.

Q: What is the process for wiring the DB-01/DZ-03 base?

A: After securing the base, connect the detector wiring to the brass, anti-corrosion plated screw terminals. The terminal block accepts both 2-wire and 4-wire configurations depending on the detector type. Always follow the recommended wiring diagram for your detector model.

Q: Does the base require maintenance or regular replacement?

A: The DB-01/DZ-03 is a passive device made from durable, fire-retardant materials and corrosion-resistant terminals, so it requires minimal maintenance. It should only be replaced if physically damaged or during system upgrades.

Q: What are the benefits of using this universal detector base?

A: Key benefits include universal compatibility with multiple detector types, quick and sturdy installation, reliable electrical contact via brass screw terminals, and enhanced safety due to its fire-retardant construction. This ensures long-term performance in critical fire alarm systems.
